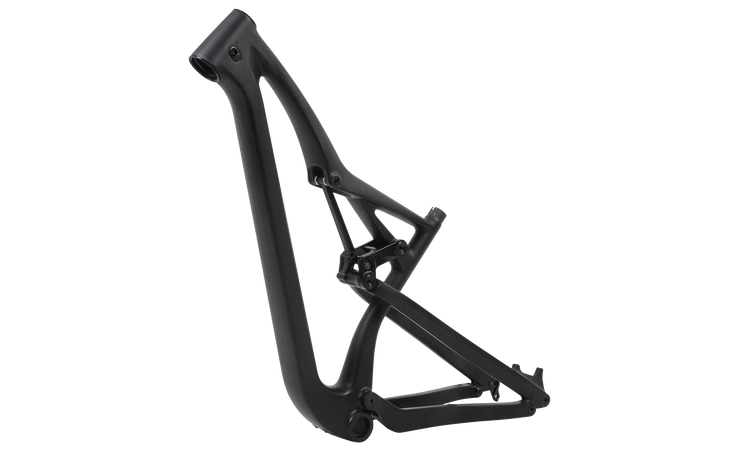

M08 FRAME

Regular price $849.00 Save $-849.00
100 in stock

SPECIFICATION

Type Mountain (AM)
Frame TORAY T700 carbon fiber, 148x12mm thru axle
Frame Travel 135-152mm
Headtube Tapered, 1 1/8"-1 1/2"
Front derailleur mount D type side swing
Bottom bracket BB92
Brake type 180mm post mount disc brake
Cable routing internal
Max tire 27.5x2.8" / 29x2.35"
Weight
Finish UD matt/glossy
Include frame, seat clamp, headset, rear thru axle

m08 geometry

SIZE 15.5" 17.5" 19" 21"
A 573 605 629 651
B 410 440 460 480
C 609 618 631 641
D 395 445 480 520
E 440 440 440 440
F 66.5º 66.5º 66.5º 66.5º
G 75º 75º 75º 75º
H -20 -20 -20 -20
I 1161 1195 1221 1245
J 100 110 125 135
HB 580/600 620/640 660/680 700/720
STEM 90 100 110 120

*The size of the HANDLEBAR (HB) and STEM is optional according to your requirement. If need, please note when placing the order. Any question please contact us or
