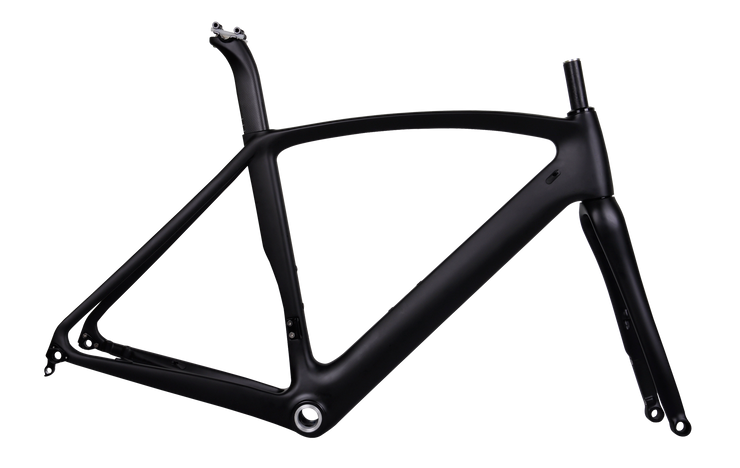

FM098 DISC FRAME

Regular price $565.00 Save $-565.00
100 in stock

SPECIFICATION

Type Road
Frame TORAY T700 carbon fiber, aerodynamic, 142x12mm thru axle
Fork TORAY T700 carbon fiber, aerodynamic, 100x12mm thru axle
Headtube Tapered, 1 1/8"-1 1/2"
Seatpost TORAY T700 carbon fiber, aerodynamic, 350mm
Front derailleur mount brazed-on
Bottom bracket BSA/BB30/PF30
Brake type flat mount disc brake
Cable routing internal
Di2 compatible
Max tire 700x32C
Weight 1050+/-45g
Finish UD matt/glossy
Include frame, fork, seatpost, seat clamp, headset, thru axles

fm098 disc geometry

SIZE 49cm 52cm 54cm 56cm 58cm 61cm
A 440 460 480 500 520 550
B 518.2 537.5 548.35 565 582.5 600
C 373.2 384 387.16 395 401 406.2
D 505.8 525 544.19 565 593.7 614.6
E 100 120 140 160 190 210
F 74º 73.7º 73.5º 73.25º 73º 72.5º
G 73º 73º 73º 73.5º 73.5º 74º
H 70 70 70 70 70 70
I 405 405 405 405 405 405
J 556 572.3 581.33 590.59 605 611.1
K 950.3 967 976 985.3 1001.9 1011.1
HB 400 400 420 420 440 440
STEM 80 90 100 100 110 120

*The size of the HANDLEBAR (HB) and STEM is optional according to your requirement. If need, please note when placing the order. Any question please contact us or
