Frame | TORAY T700 carbon fiber, internal cable routing, post mount disc brake, 148x12 thru axle |
 |
Fork | Suspension fork, air, 100mm travel, 1 1/8"-1 1/2" steer tube, 110x15 thru axle |
 |
Seat post | UDING, suspension seat post, 31.6mm diameter, 100mm drop |
 |
Headset | tapered, 1 1/8"-1 1/2" |
 |
Motor | BAFANG M600 G521 500W 48V |
 |
Battery | DENGFU Lithium-ion 48V 17.5Ah 840Wh |
 |
Rear Derailleur | SRAM RD-SX EAGLE |
 |
Front Derailleur | W/O |
 |
Crankset | BAFANG EB02 170mm 38T |
 |
Cassette | SRAM CS-PG-1210 EAGLE 11-50T 12S |
 |
Shifters | SRAM SL-SX EAGLE TRIGGER |
 |
Brakes | SRAM DB LVL |
 |
Chain | SRAM CN-SX EAGLE 12S |
 |
Wheels | Aluminum Alloy, MTB hubs, 6-bolt, 110x15 front, 148x12 rear, DT Champion spokes, 32/32 holes |
 |
Handlebar | Aluminum Alloy 800mm |
 |
Stem | Aluminum Alloy 45mm |
 |
Saddle | comfortable, black |
 |
Pedal | W/O |
The quotation is based on carbon matt finish, without any design.
TORAY CARBON FIBER
Manufactured with Toray T700 carbon fiber. Lightweight, strong, stiff and durable.

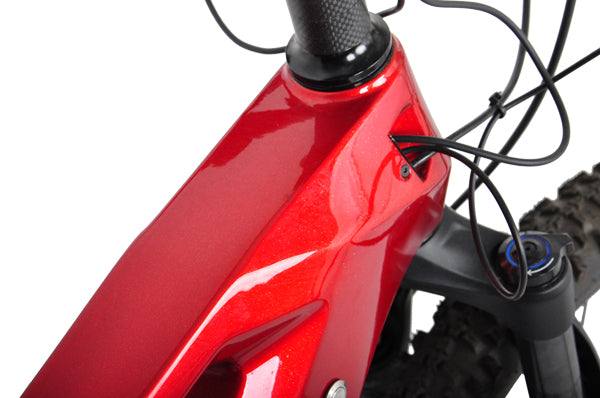

INTERNAL CABLE ROUTING
Internal cable routing gives the bike a sleek, tight and attractive look.
BAFANG M500/M600 500W MID MOTOR
Equipped with Shimano Bafang M500/M600 Mid Motor, 500W, 48V.

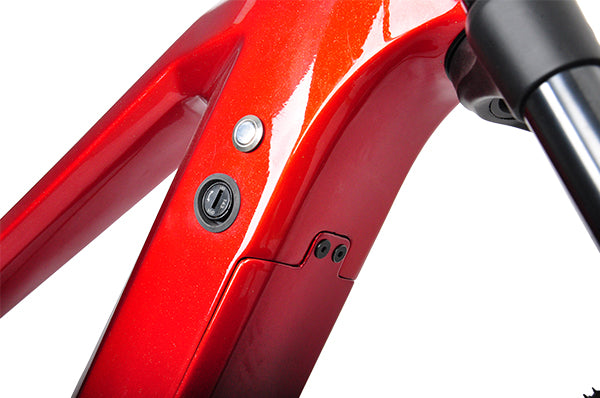

SAMSUNG CELL 816WH BATTERY
The Sumsung cell 816Wh (48V, 17Ah) battery is hidden in the down tube and easy to install, providing enough energy to ride farther.

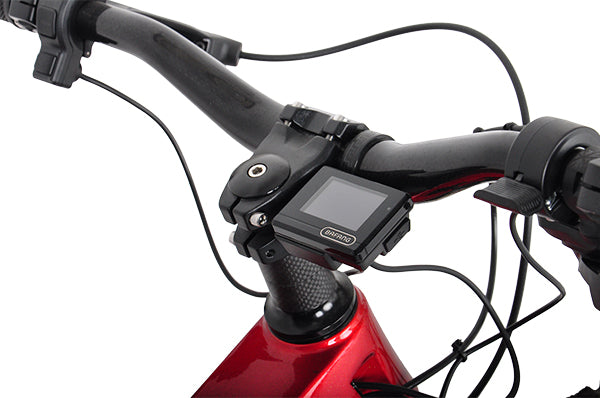

BAFANG DISPLAY
Record and indicate the data about your riding. No matter under strong light or at night.

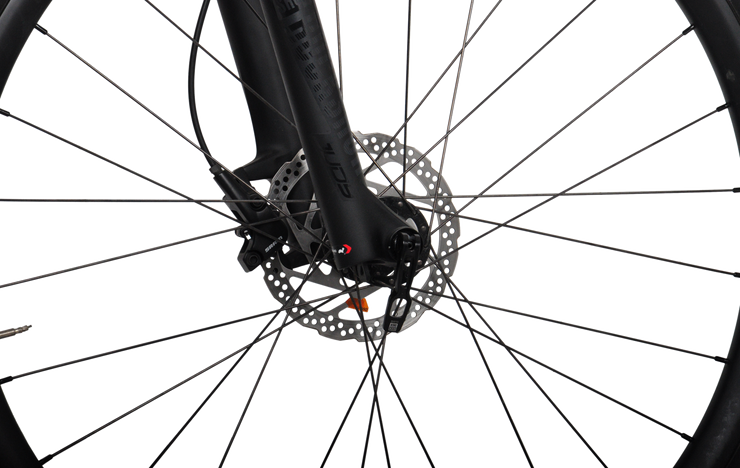

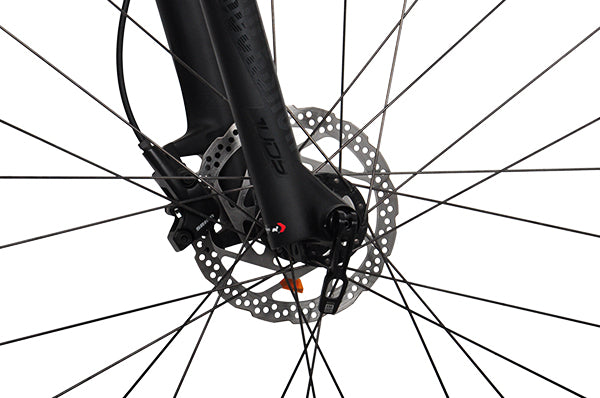

160MM POST MOUNT DISC BRAKE
The 160mm post mount disc brake ensures the powerful and accurate braking in any case.
| SIZE | 15" | 17" | 19" | 21" |
| ST | 400 | 440 | 480 | 520 |
| TT | 587 | 612 | 637 | 662 |
| HT | 100 | 110 | 120 | 135 |
| HA | 69° | 69° | 69° | 69° |
| CA | 73.6° | 73.6° | 73.6° | 73.6° |
| RC | 458 | 458 | 458 | 458 |
| FC | 701 | 726 | 751 | 776 |
| OFFSET | 51 | 51 | 51 | 51 |
| WB | 1153 | 1178 | 1205 | 1230 |
| STACK | 613 | 618 | 623 | 633 |
| REACH | 430.5 | 454.5 | 477.5 | 499.5 |
