SPECIFICATION
| Type | E-MTB |

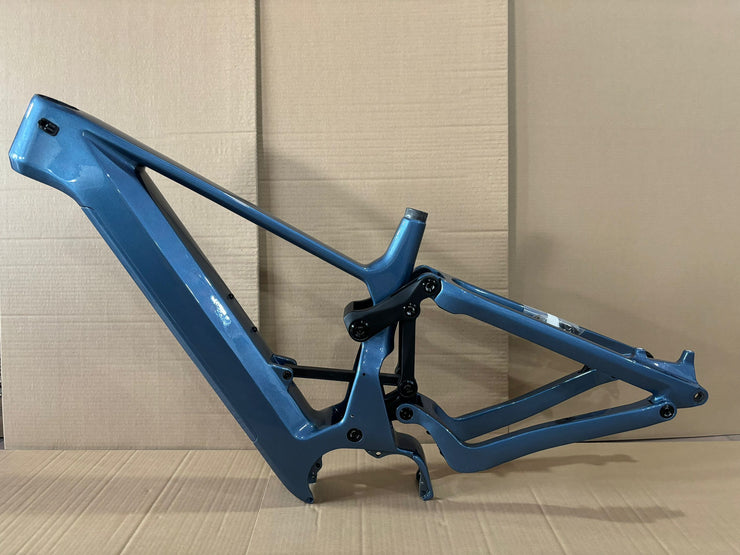

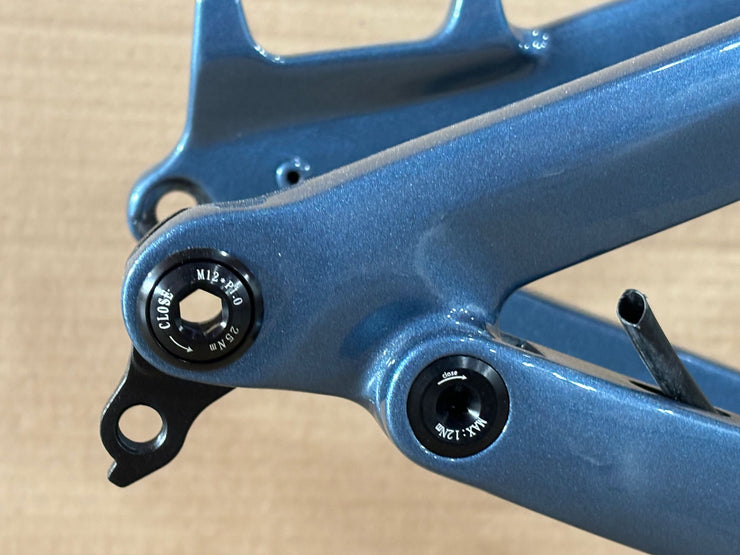

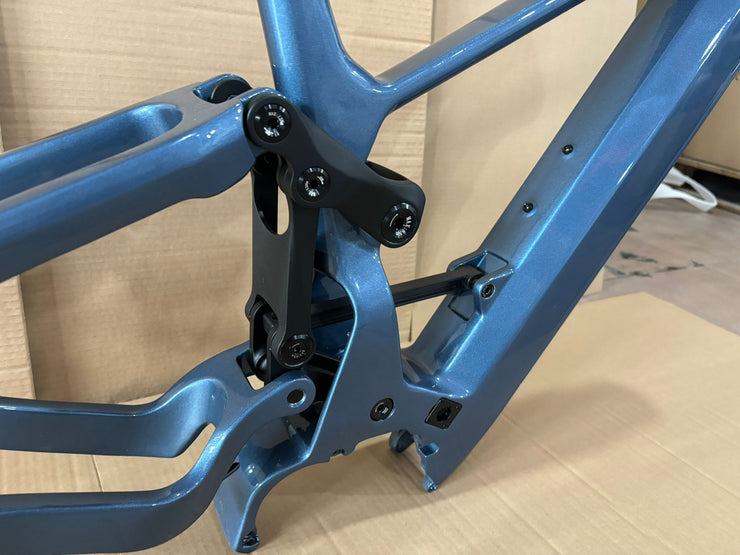

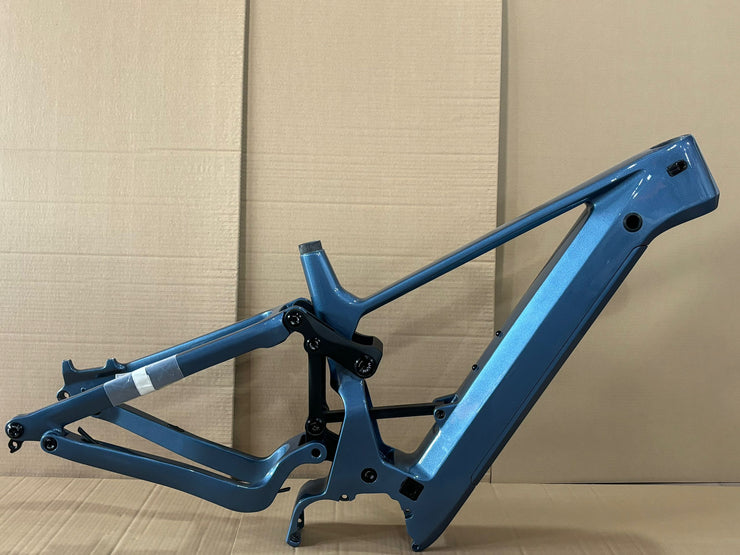

| Frame | TORAY T700 and T800 carbon fiber, 148x12mm thru axle / UDH rear hanger |
| Frame travel | 170mm |
| Motor |
BAFANG M510 48V 250W motor / M560 RS 750W motor Crank set: 38T+170mm crank arm
Display: Option 1: DPC080, DPC010 and DPC245 are shipped randomly
Option 2: Integrated DPC030 display on the top tube(if you need this option, pls specify in the order)
If you don't need motor, pls let us know which motor and speed sensor you will use.
|
| Battery | DENGFU 48V 21Ah 1008Wh |
| Suitable rear shock | 230X60mm |
| Headset | 1 1/2"-1 1/2" |

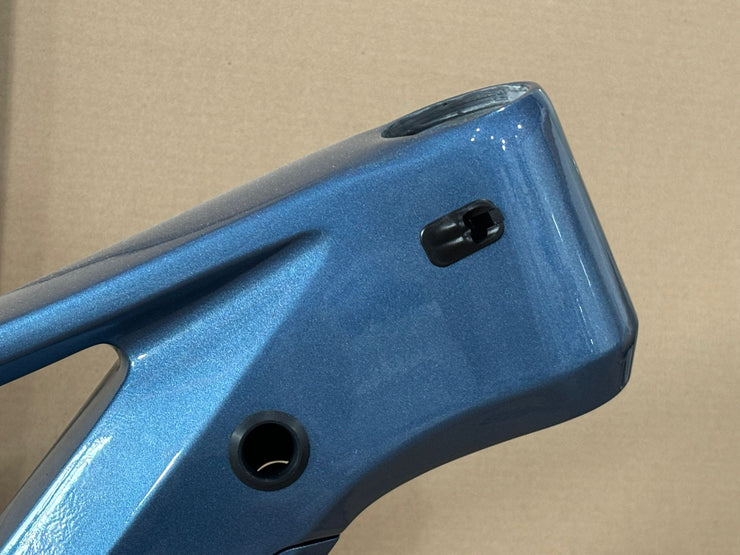

| Cable routing | frame routing as in the picture |
| Max tire | 29er*2.6” or 27.5er*2.8 |
| Finish | red/white/black in glossy/matt |
| Include | frame, headset, thru axle, motor, battery, battery bracket, charger, shock bushes(for SRAM rear shock) |
| Shock bushes | 32.3x10mm; |
