DengFu E55 EMTB geometry parameter and curve

DengFu E55 EMTB geometry parameter and curve as shown below:

DengFu E55 EMTB Geometry Parameter

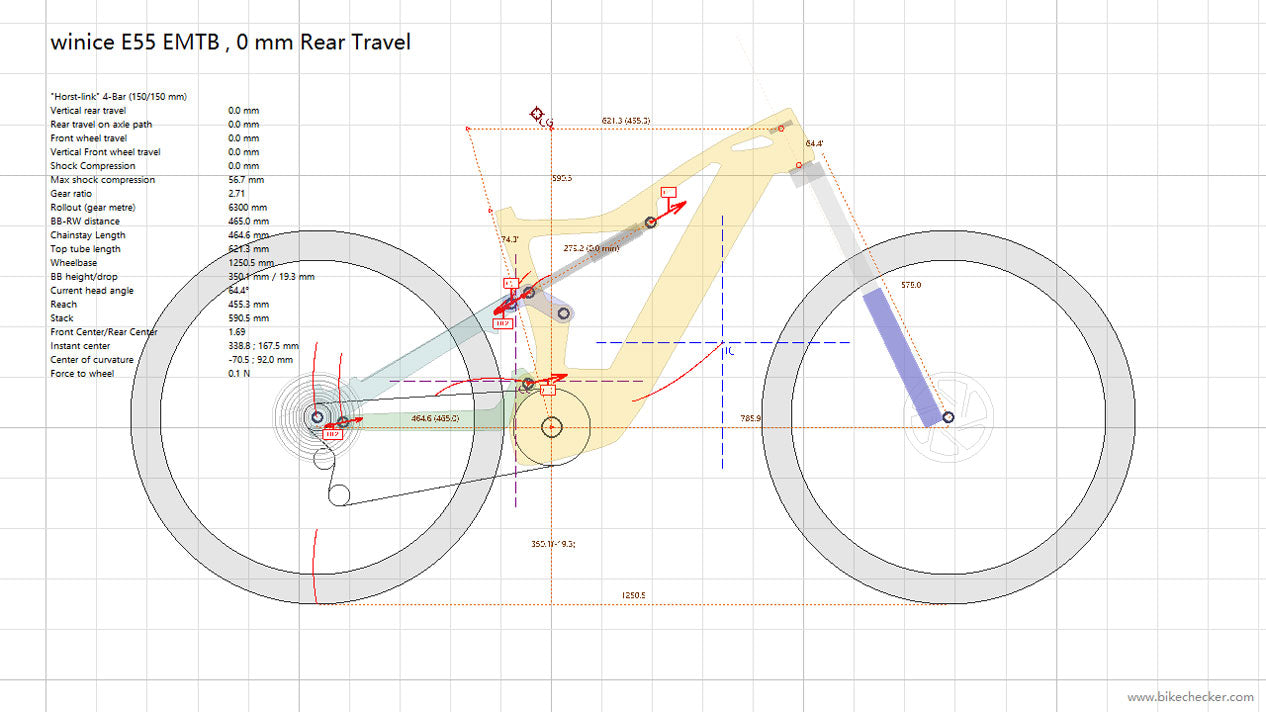

winice E55 EMTB_000

winice E55 EMTB_000

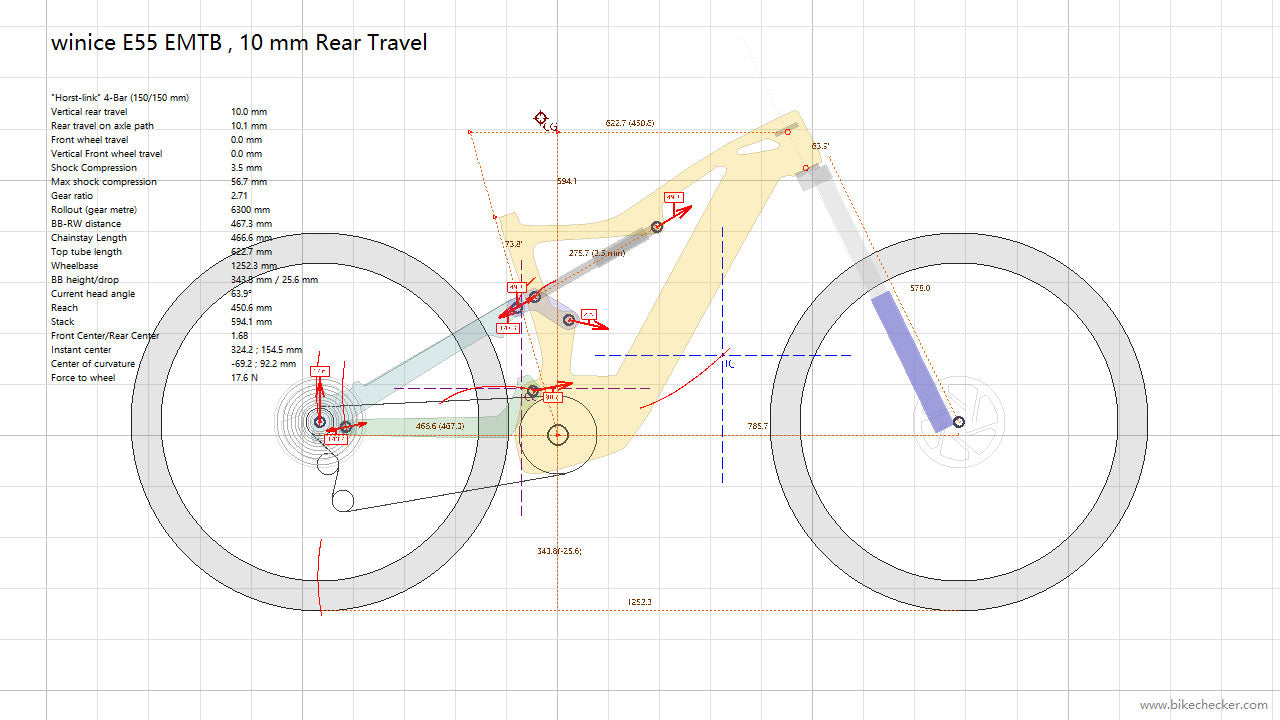

winice E55 EMTB_010

winice E55 EMTB_010

winice E55 EMTB_020

winice E55 EMTB_020

winice E55 EMTB_030

winice E55 EMTB_030

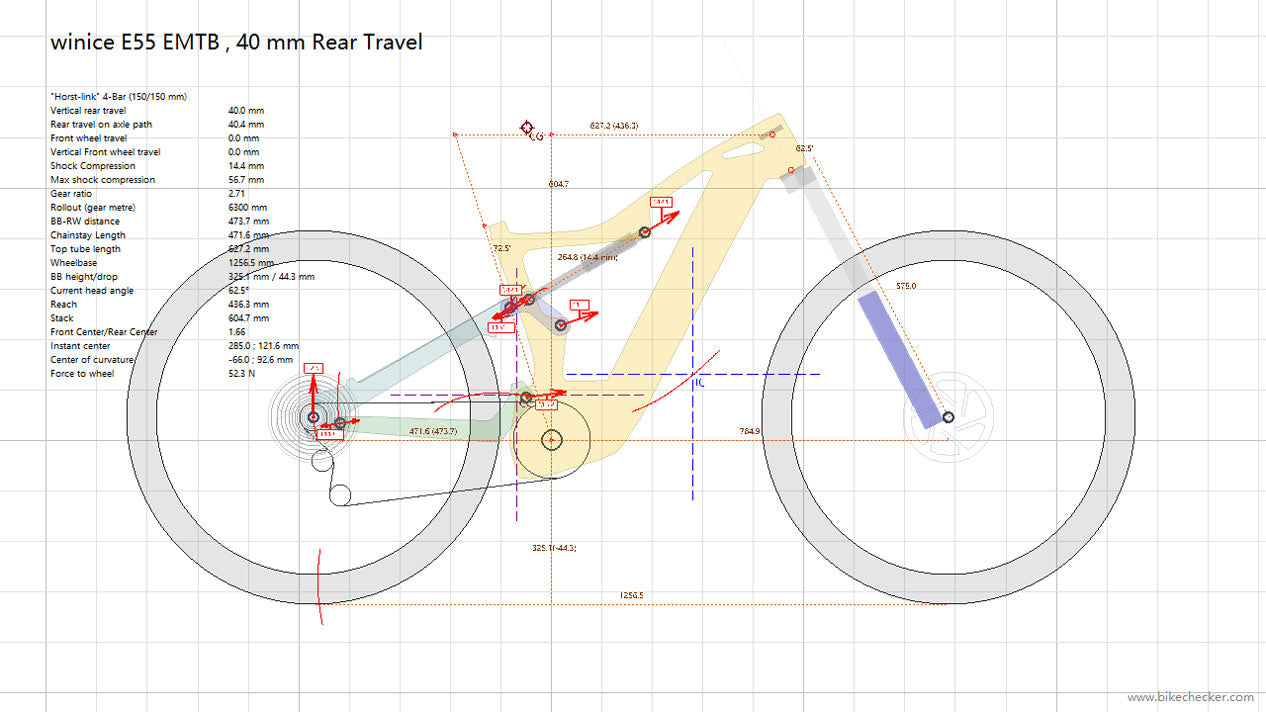

winice E55 EMTB_040

winice E55 EMTB_040

winice E55 EMTB_050

winice E55 EMTB_050

winice E55 EMTB_060

winice E55 EMTB_060

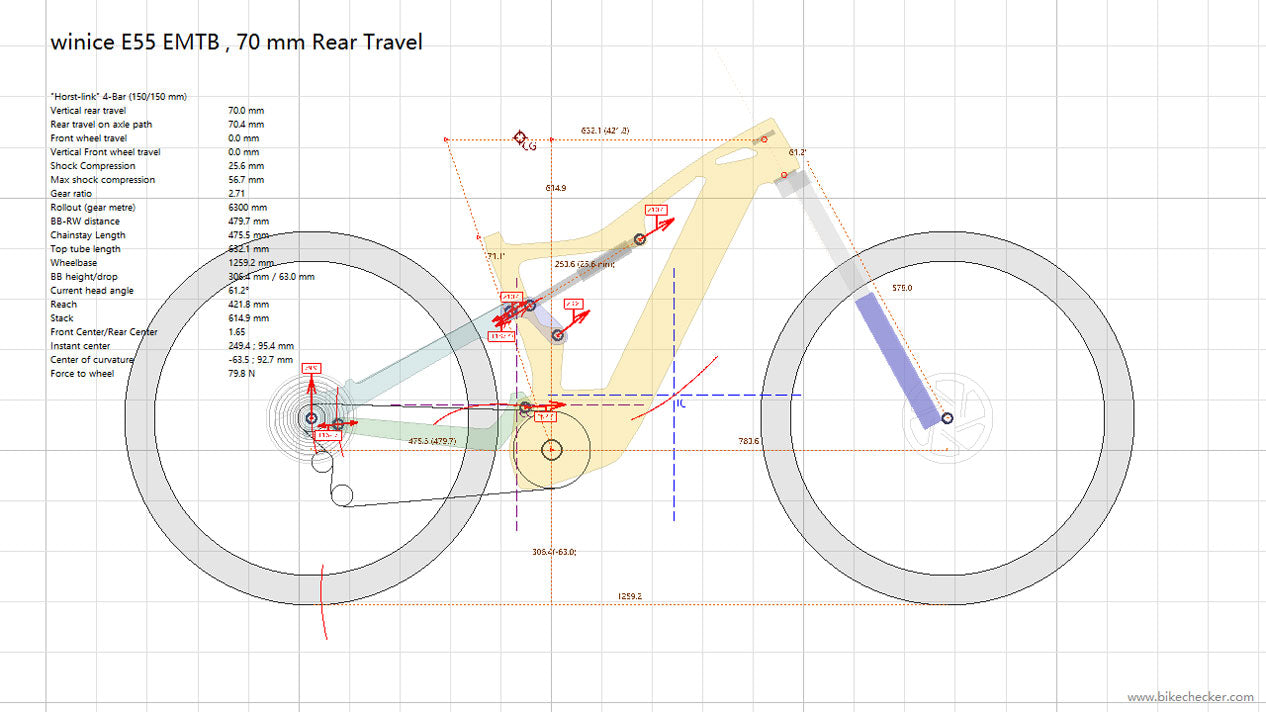

winice E55 EMTB_070

winice E55 EMTB_070

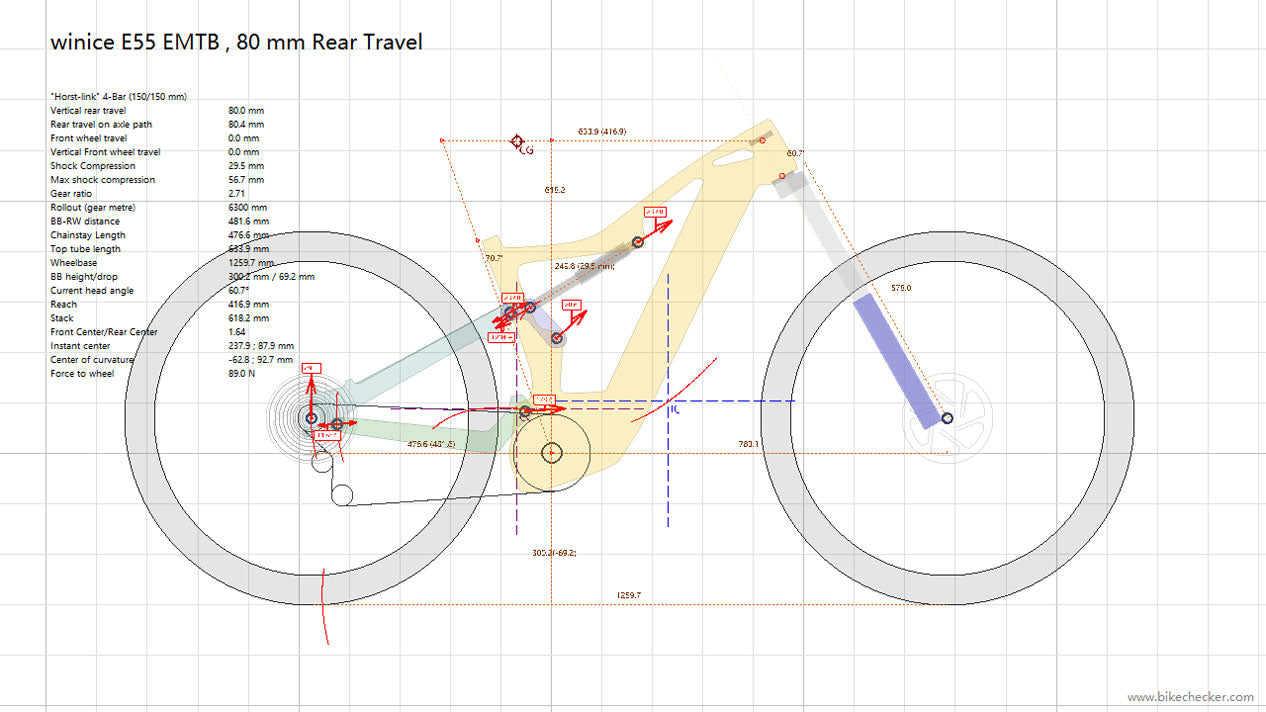

winice E55 EMTB_080

winice E55 EMTB_080

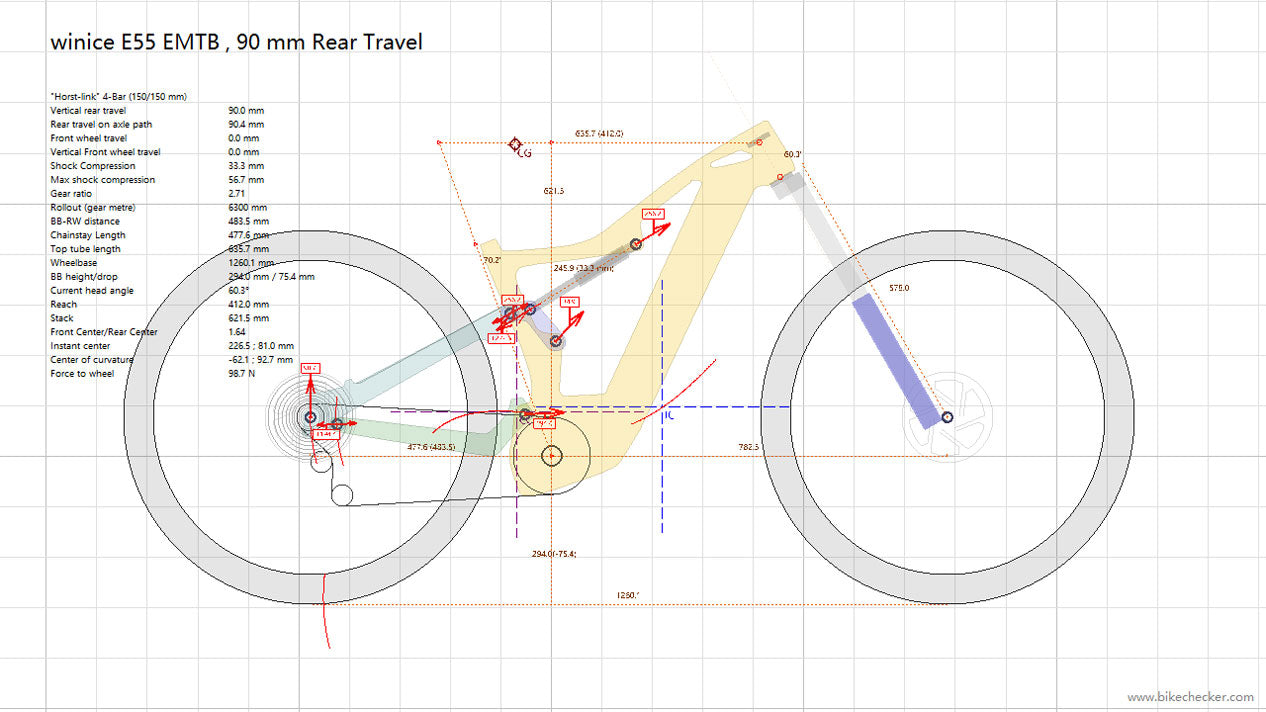

winice E55 EMTB_090

winice E55 EMTB_090

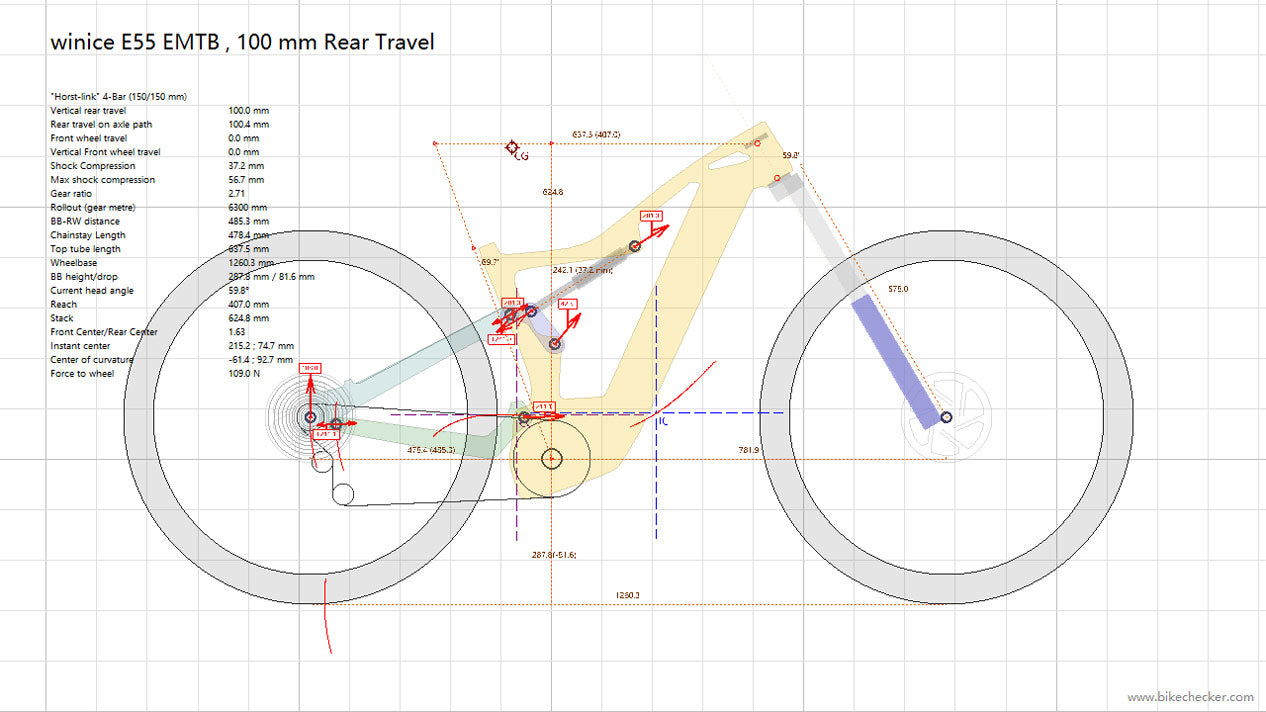

winice E55 EMTB_100

winice E55 EMTB_100

winice E55 EMTB_110

winice E55 EMTB_110

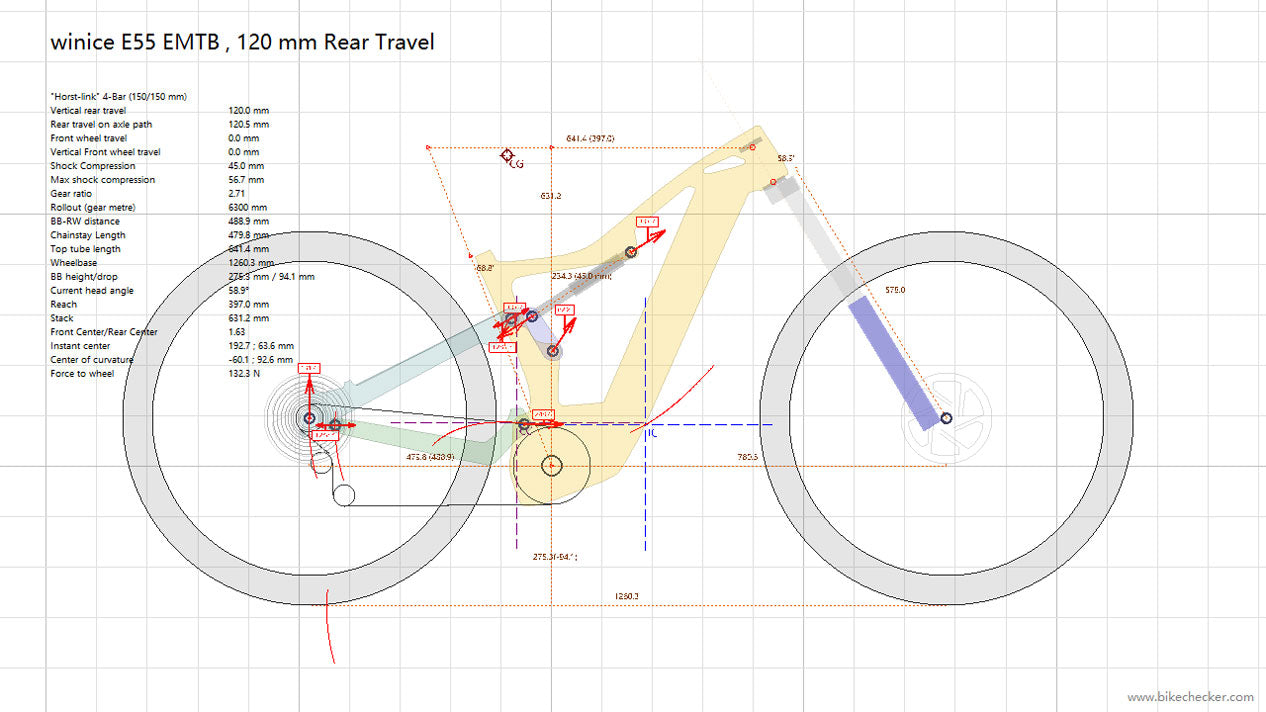

winice E55 EMTB_120

winice E55 EMTB_120

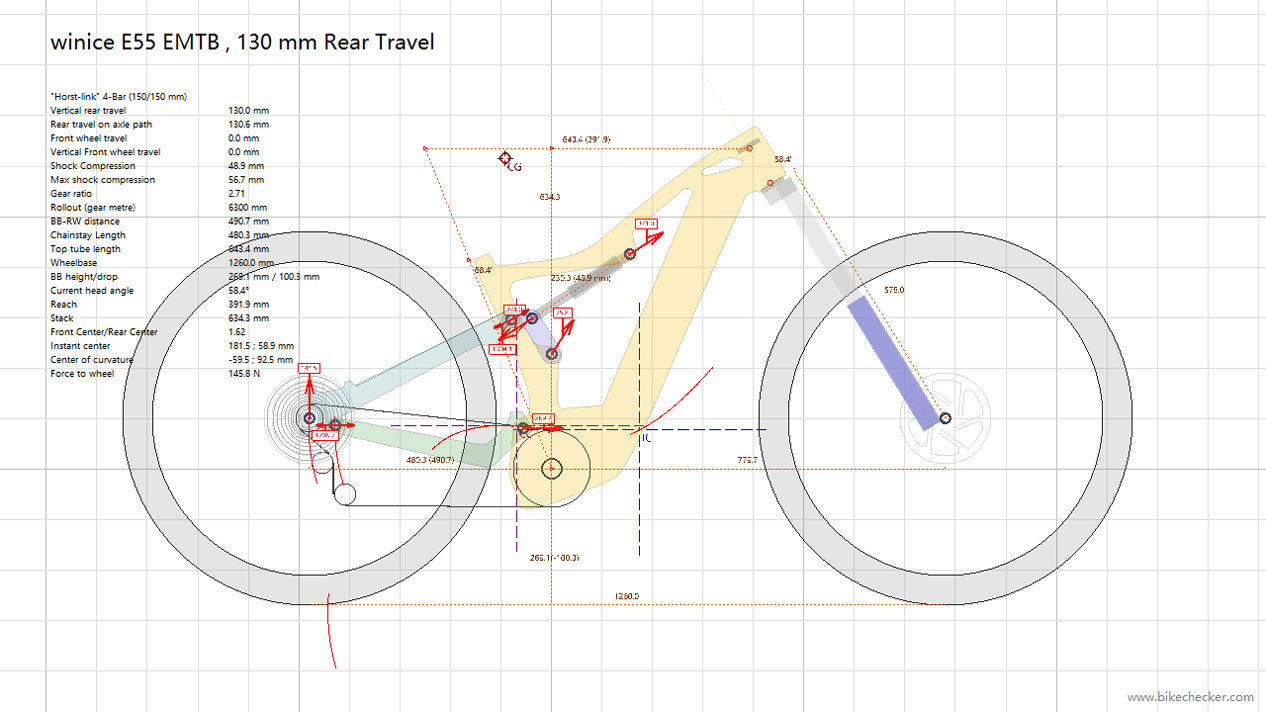

winice E55 EMTB_130

winice E55 EMTB_130

winice E55 EMTB_140

winice E55 EMTB_140

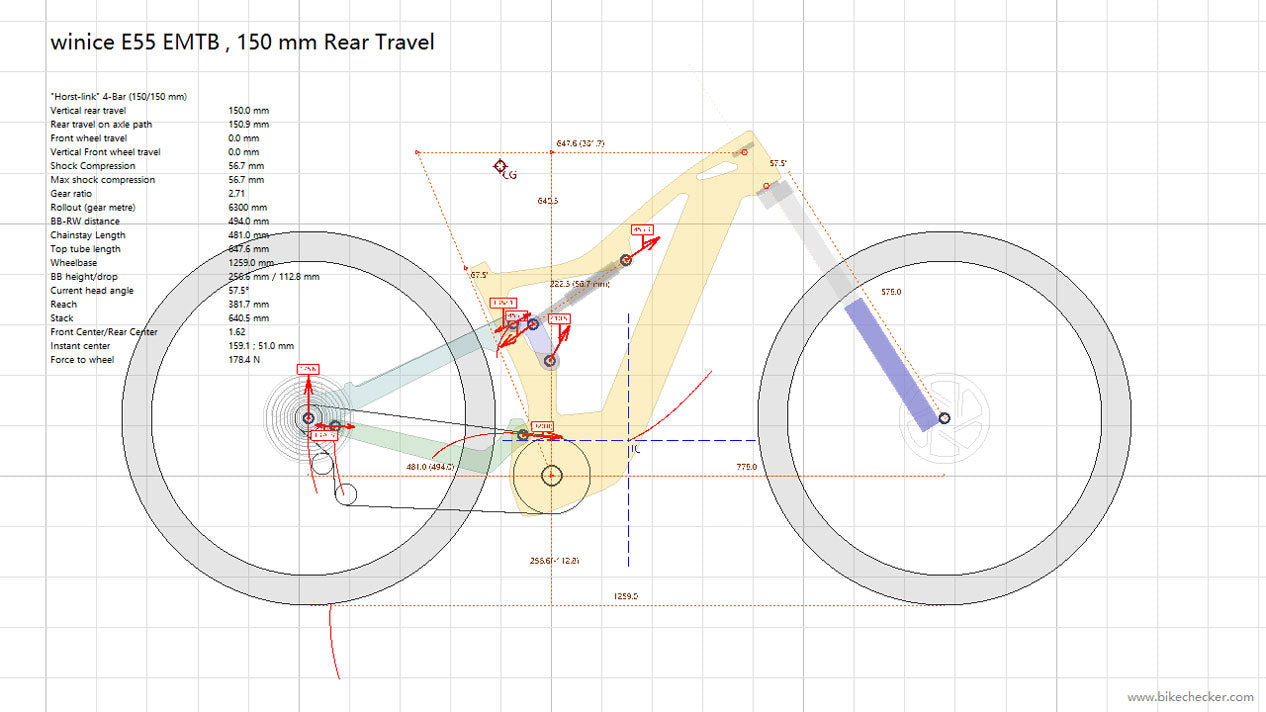

winice E55 EMTB_150

winice E55 EMTB_150

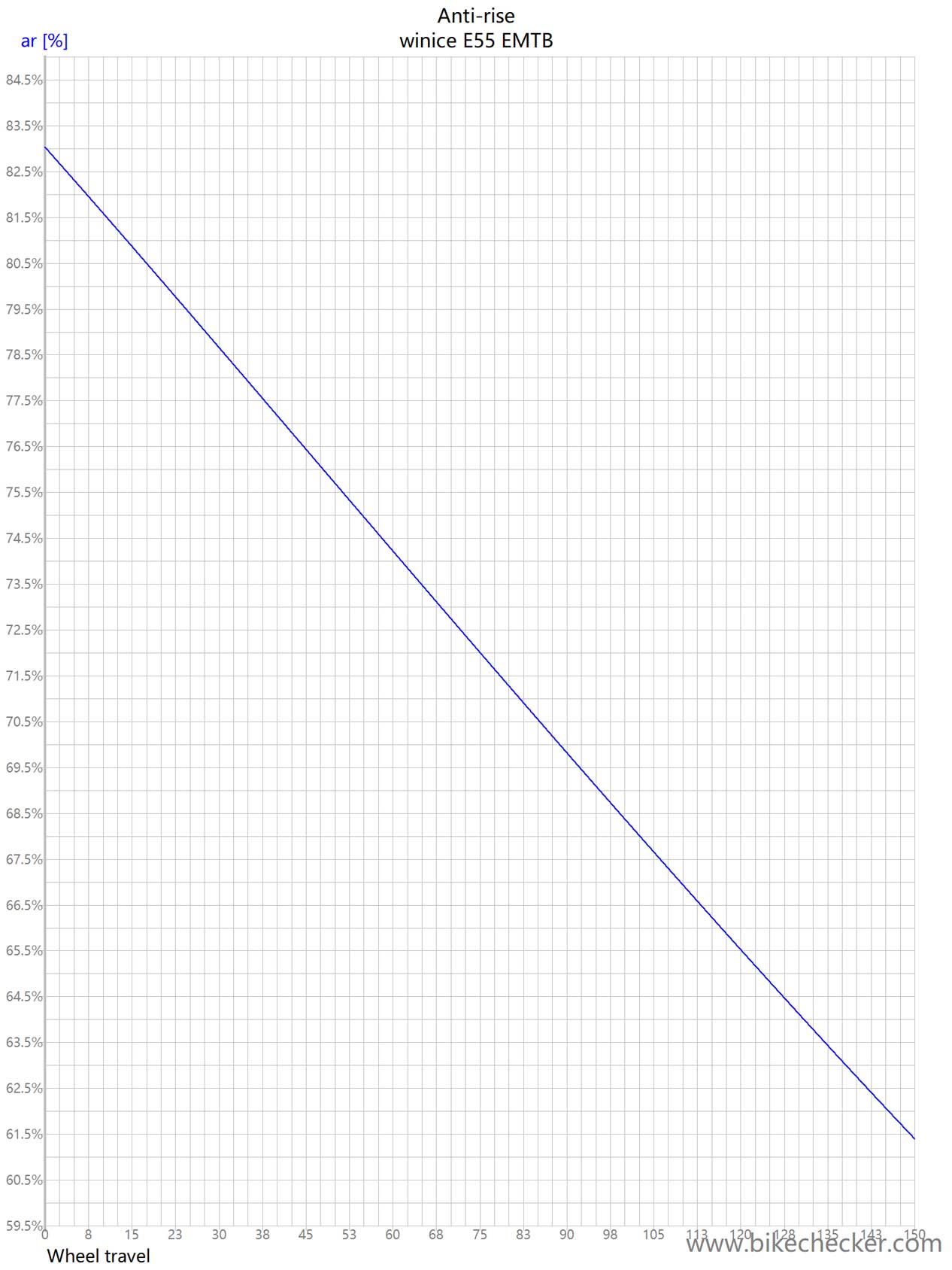

winice E55 EMTB_Anti-rise

winice E55 EMTB_Anti-rise

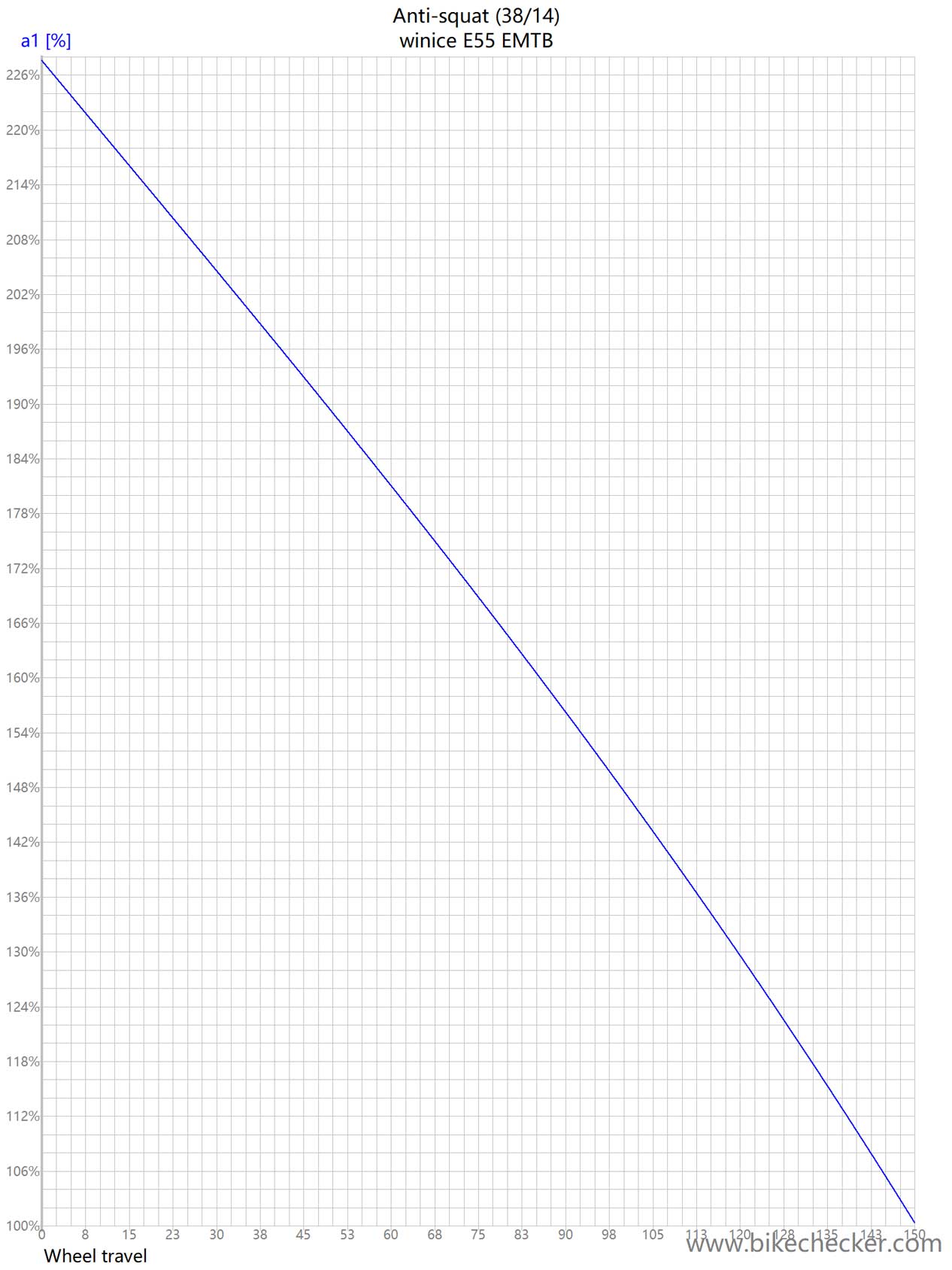

winice E55 EMTB_Anti-squat

winice E55 EMTB_Anti-squat

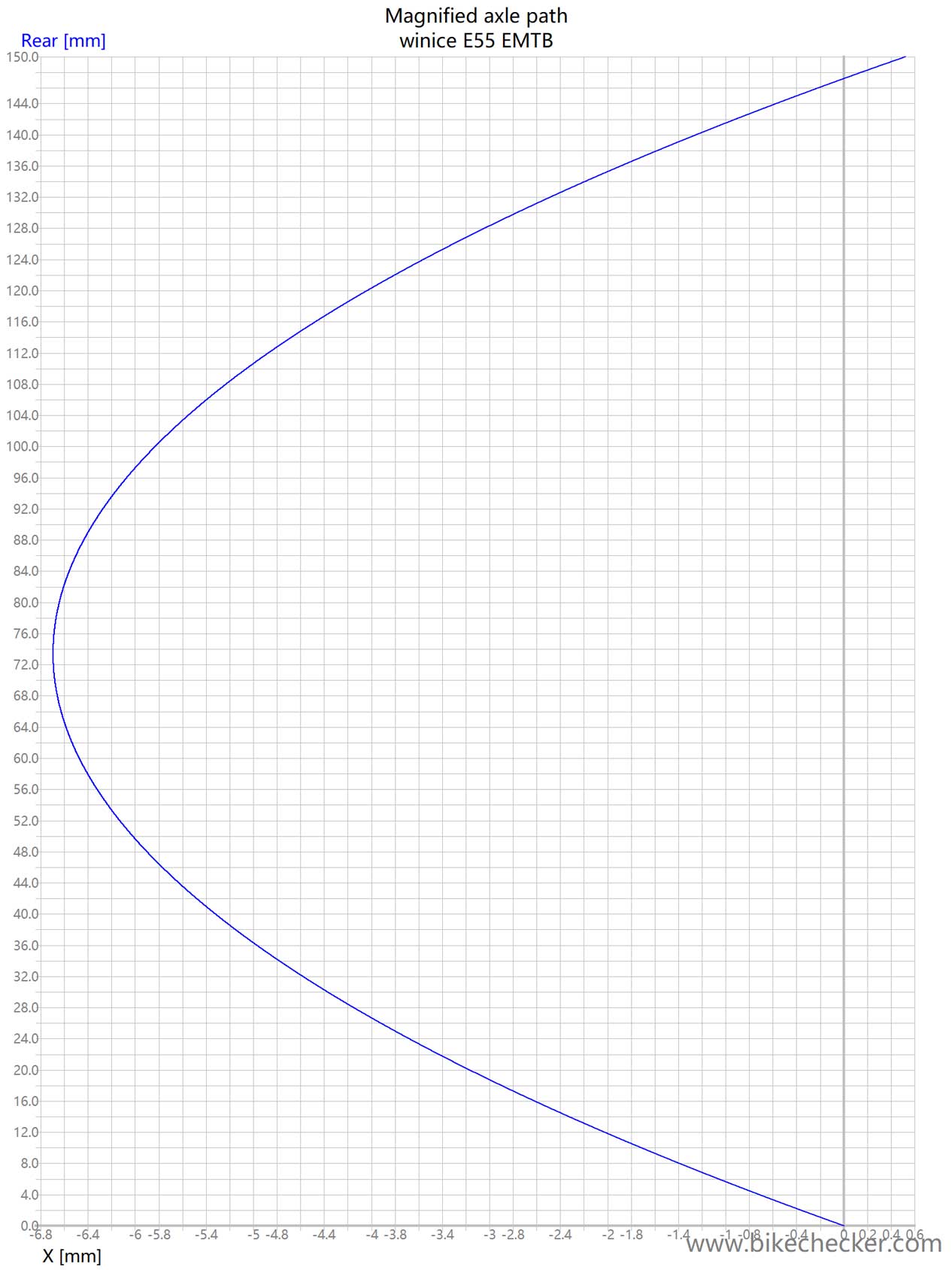

winice E55 EMTB_AxlePath

winice E55 EMTB_AxlePath

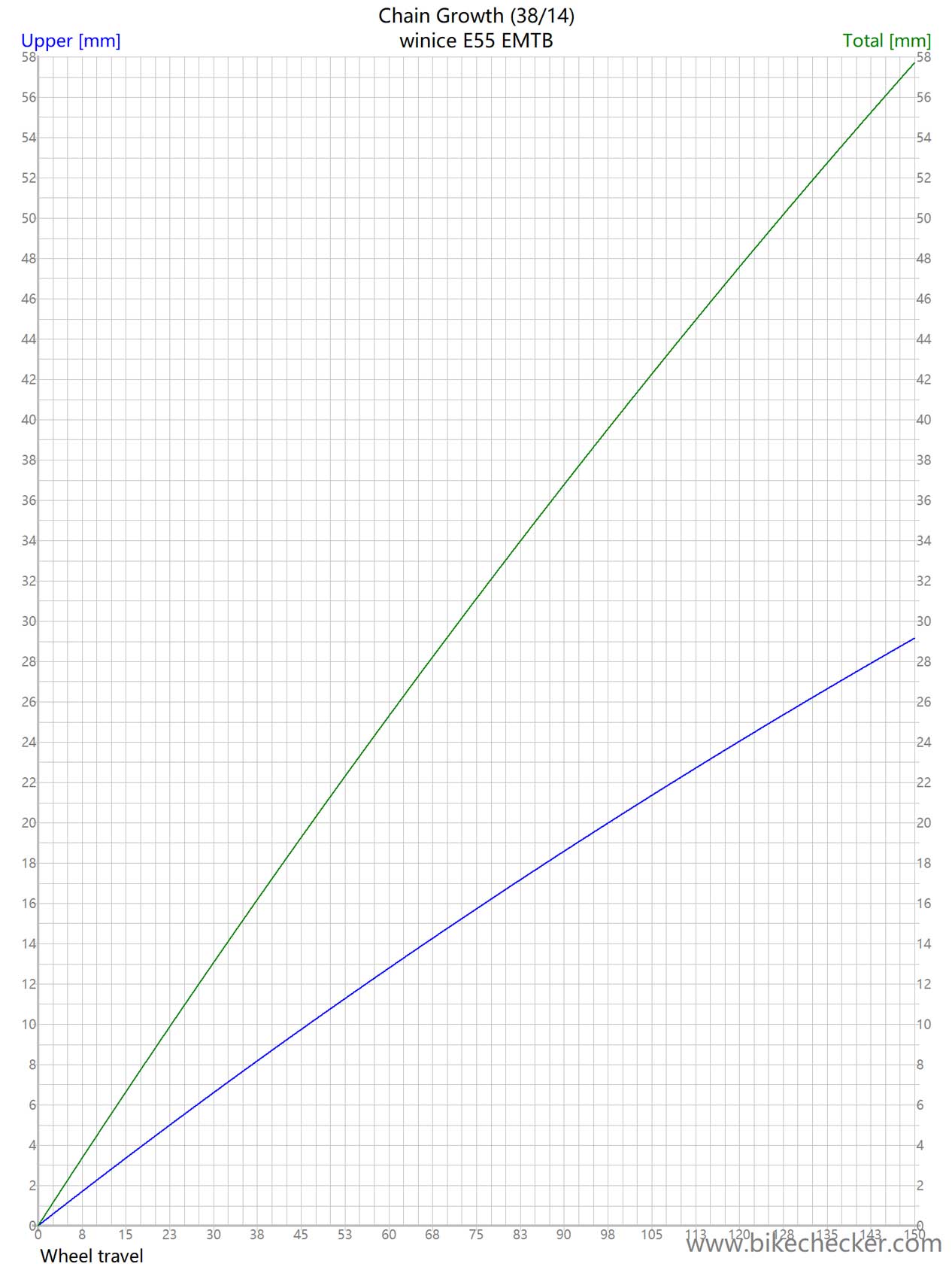

winice E55 EMTB_Chain

winice E55 EMTB_Chain

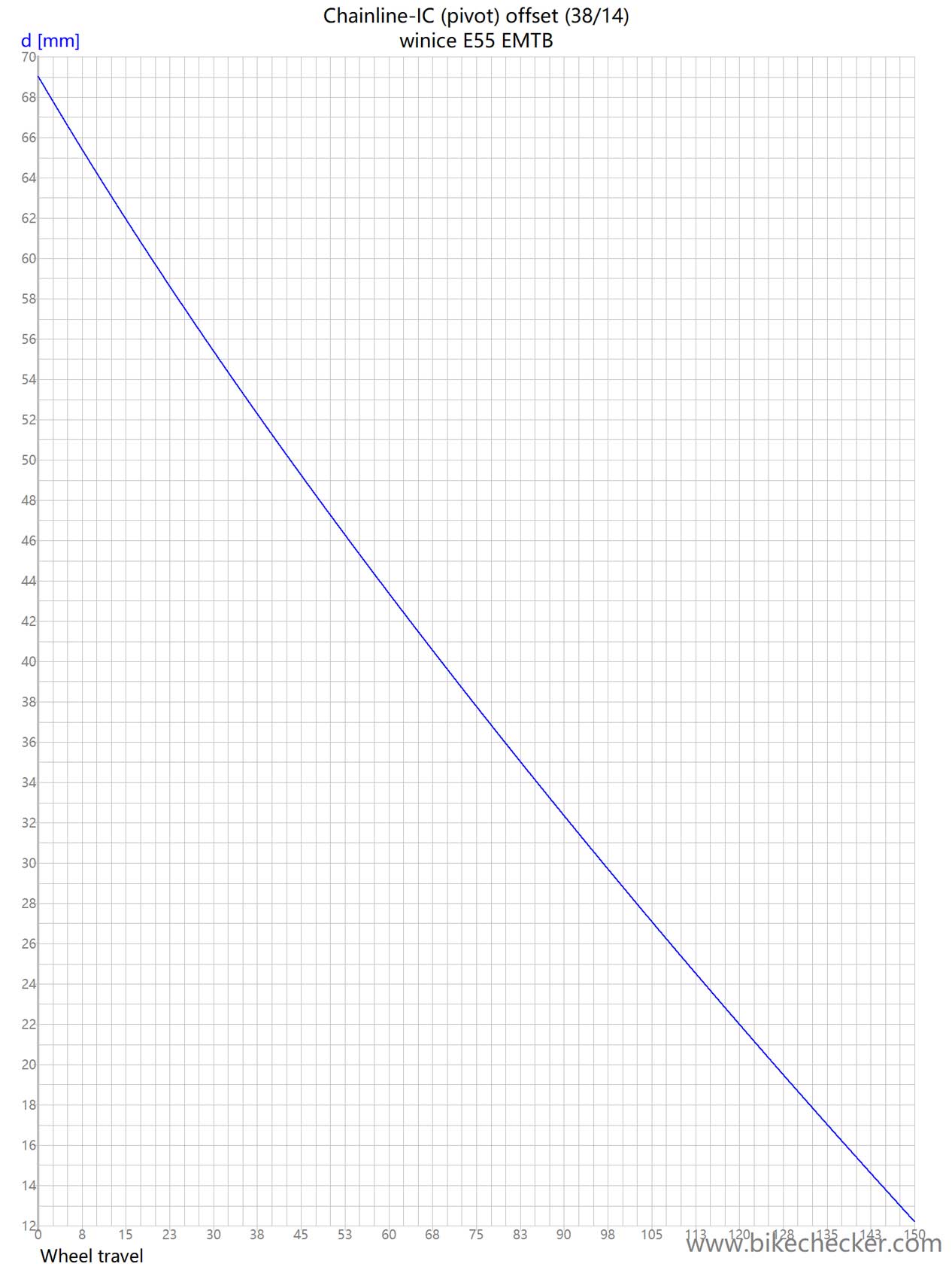

winice E55 EMTB_Chainoffset

winice E55 EMTB_Chainoffset

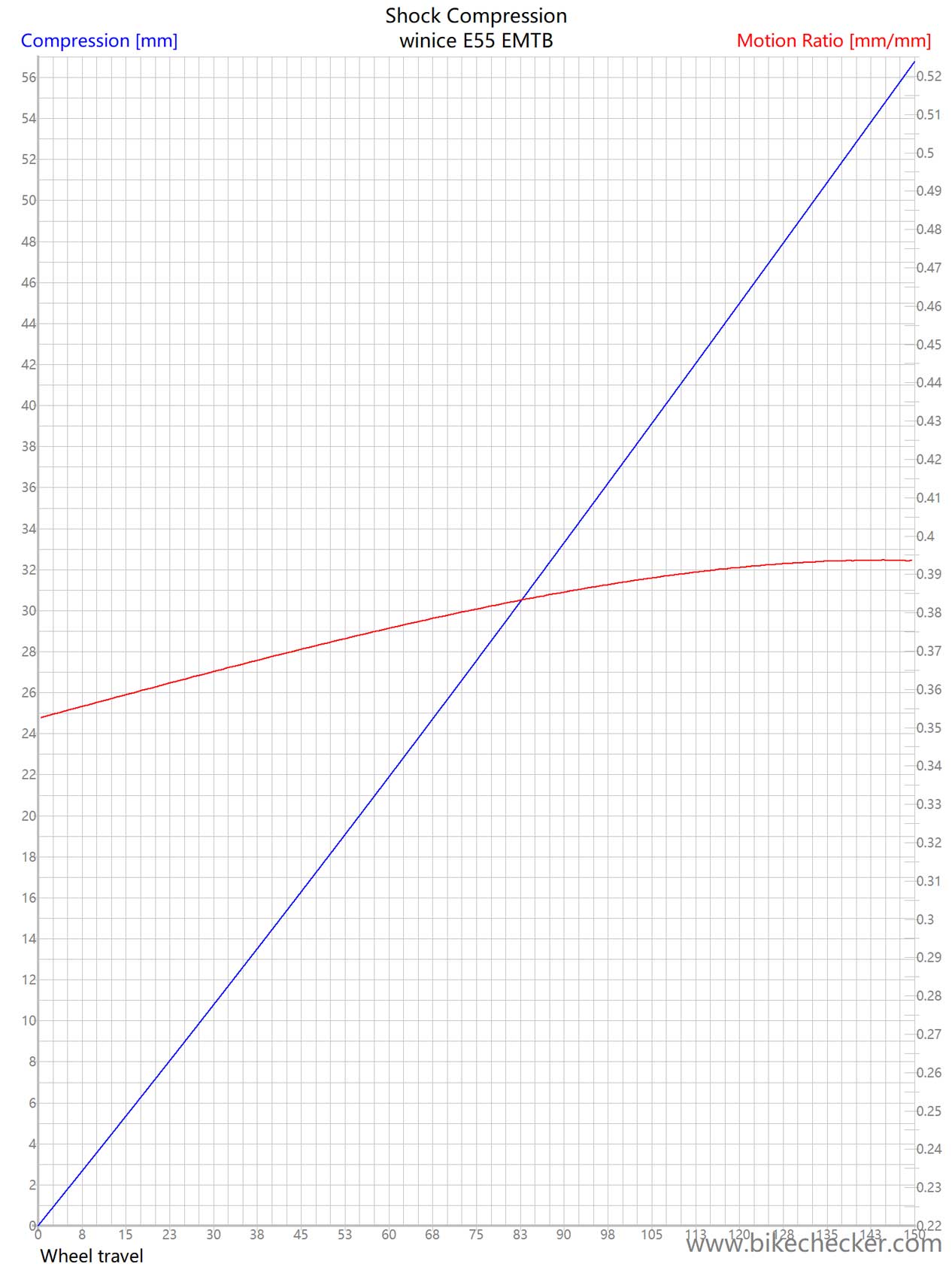

winice E55 EMTB_Compression

winice E55 EMTB_Compression

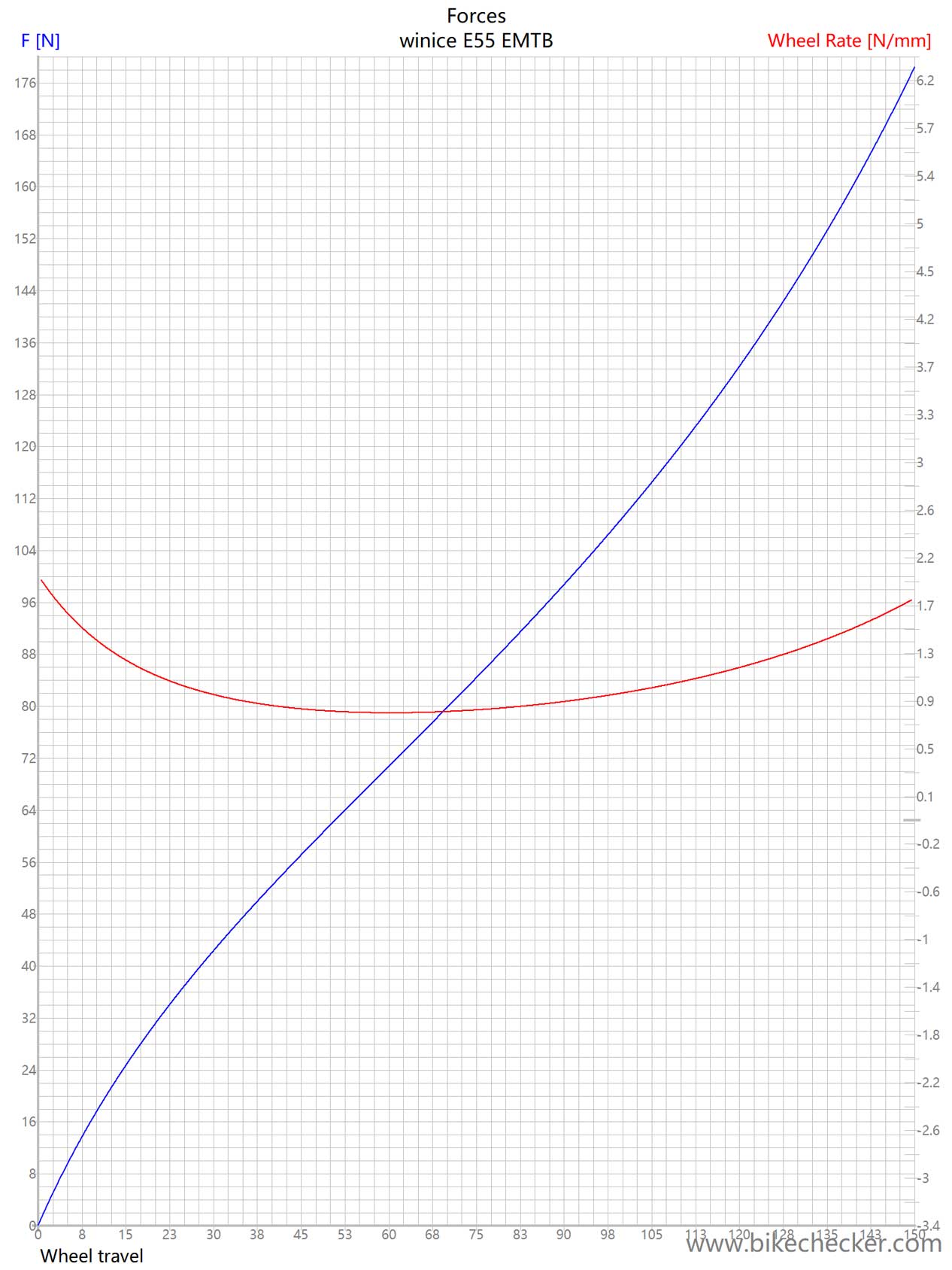

winice E55 EMTB_Forces

winice E55 EMTB_Forces

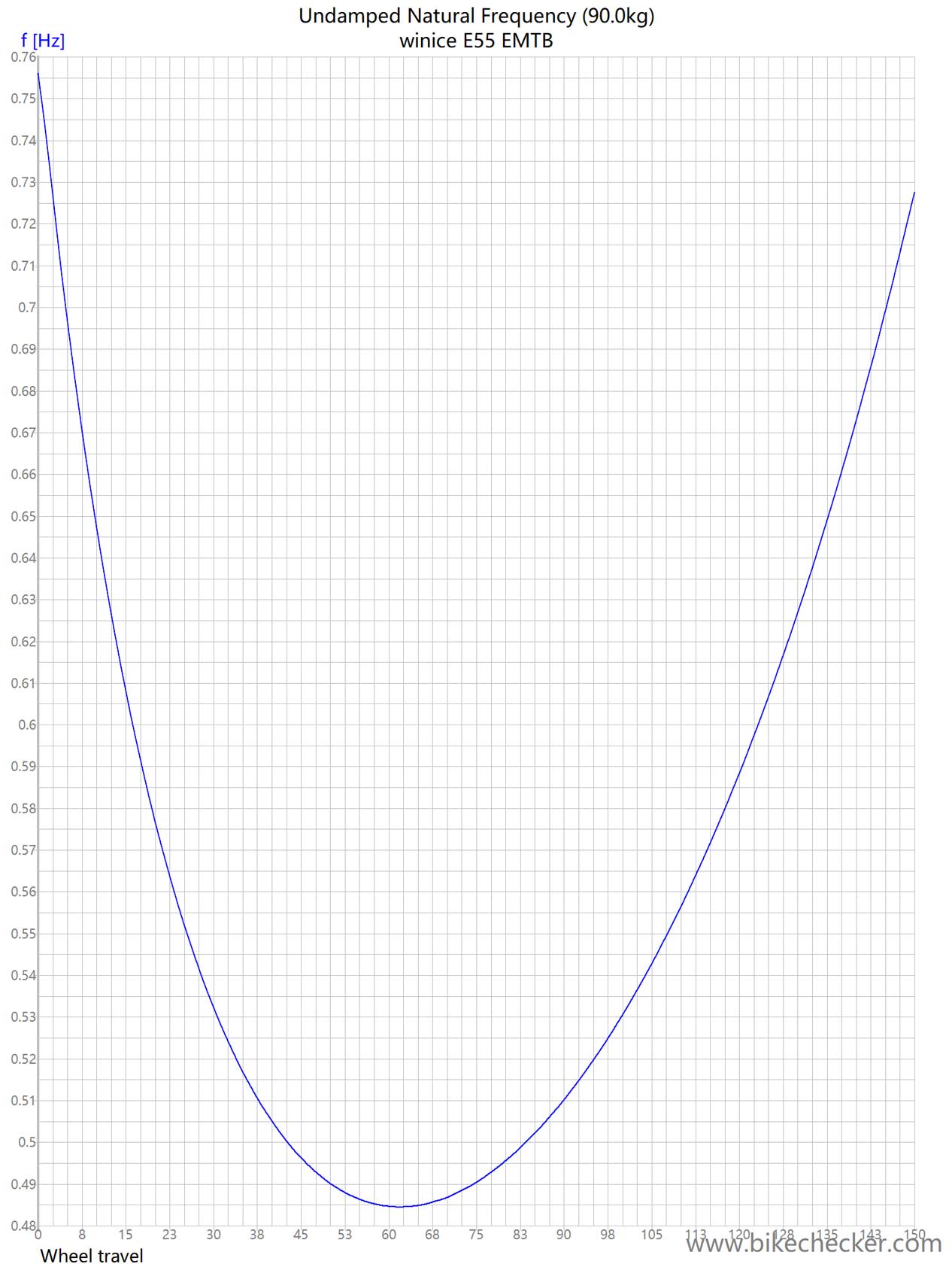

winice E55 EMTB_Frequency

winice E55 EMTB_Frequency

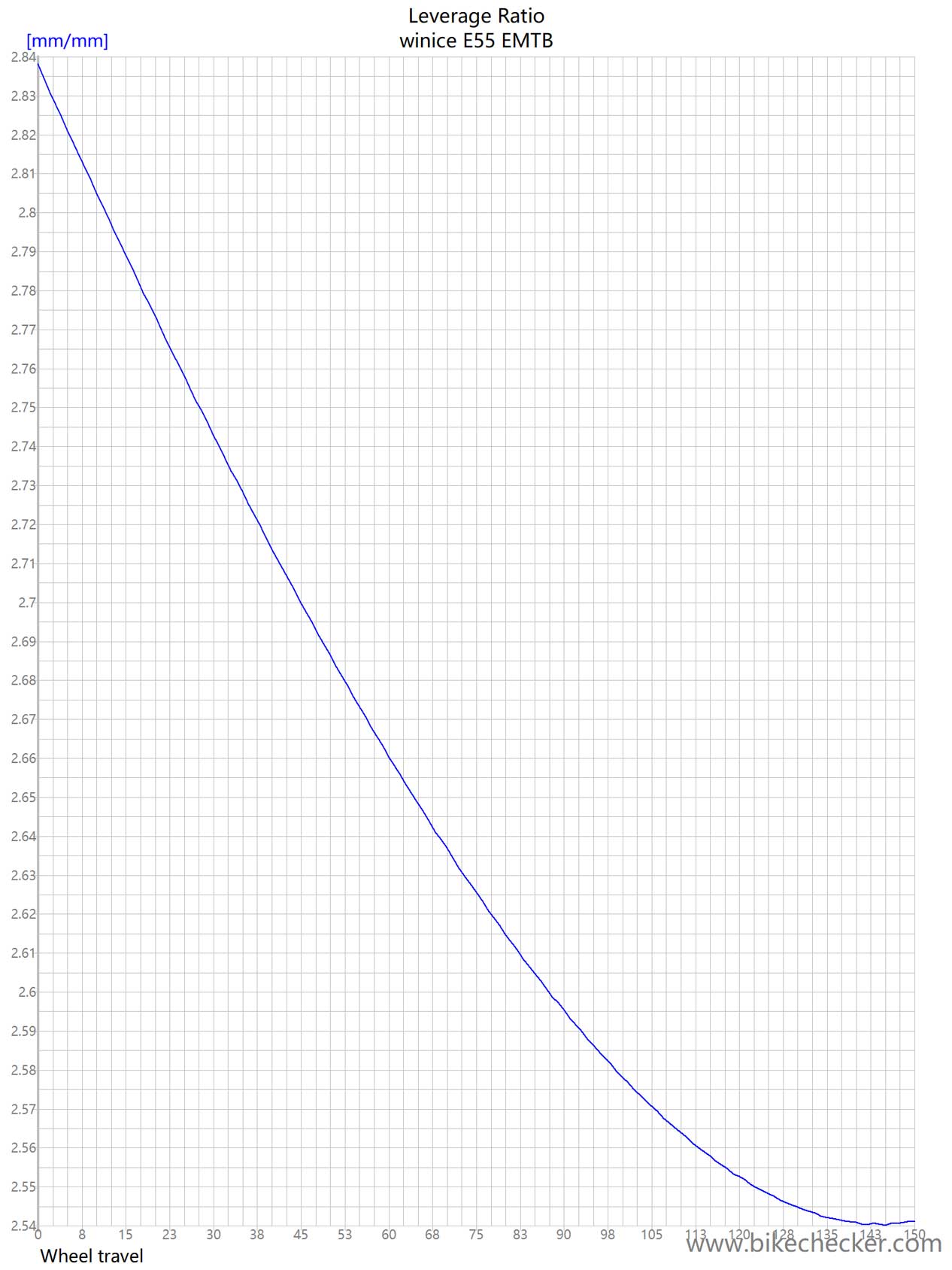

winice E55 EMTB_LevRatio

winice E55 EMTB_LevRatio

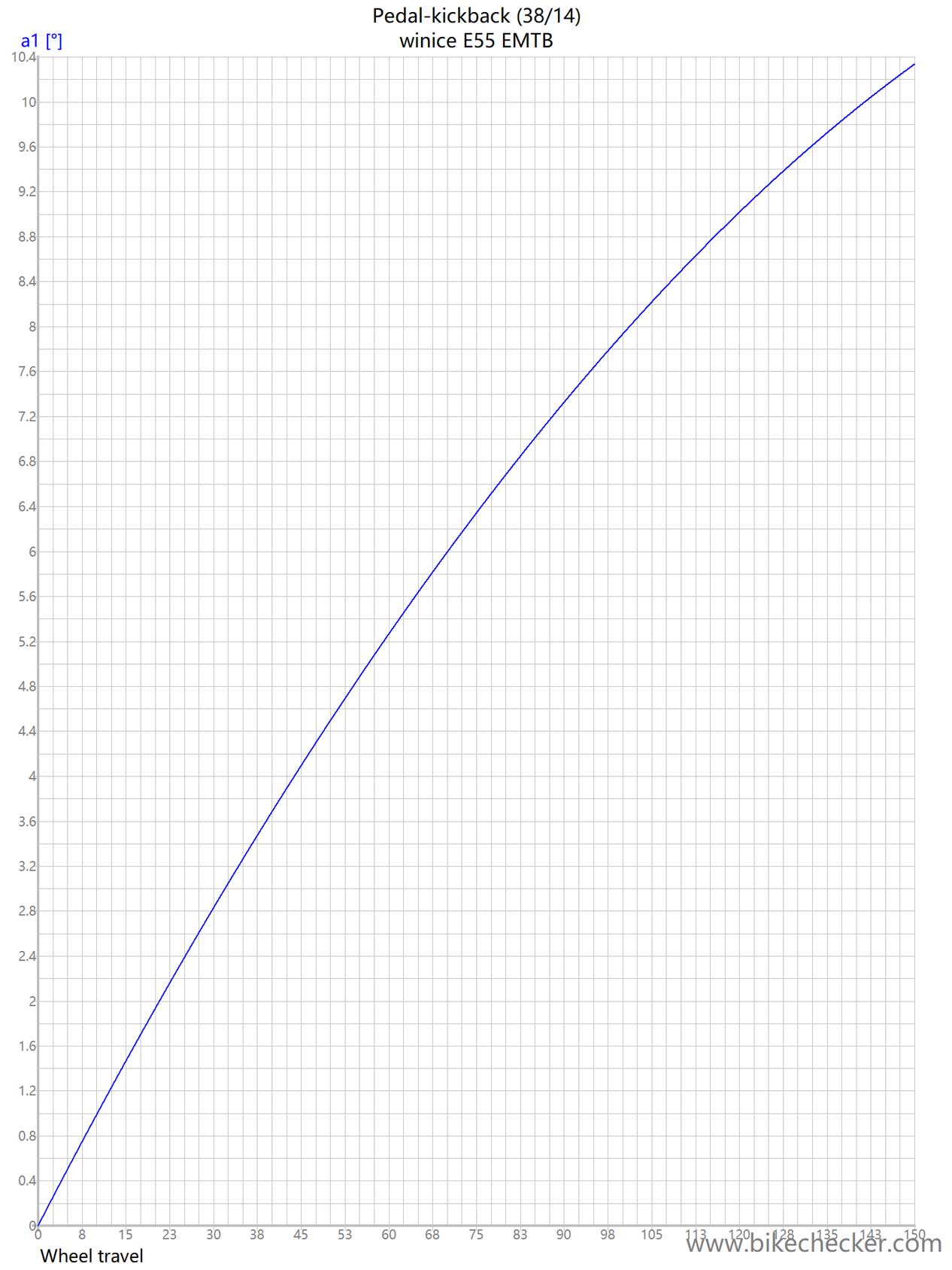

winice E55 EMTB_Pedal-kickback

winice E55 EMTB_Pedal-kickback

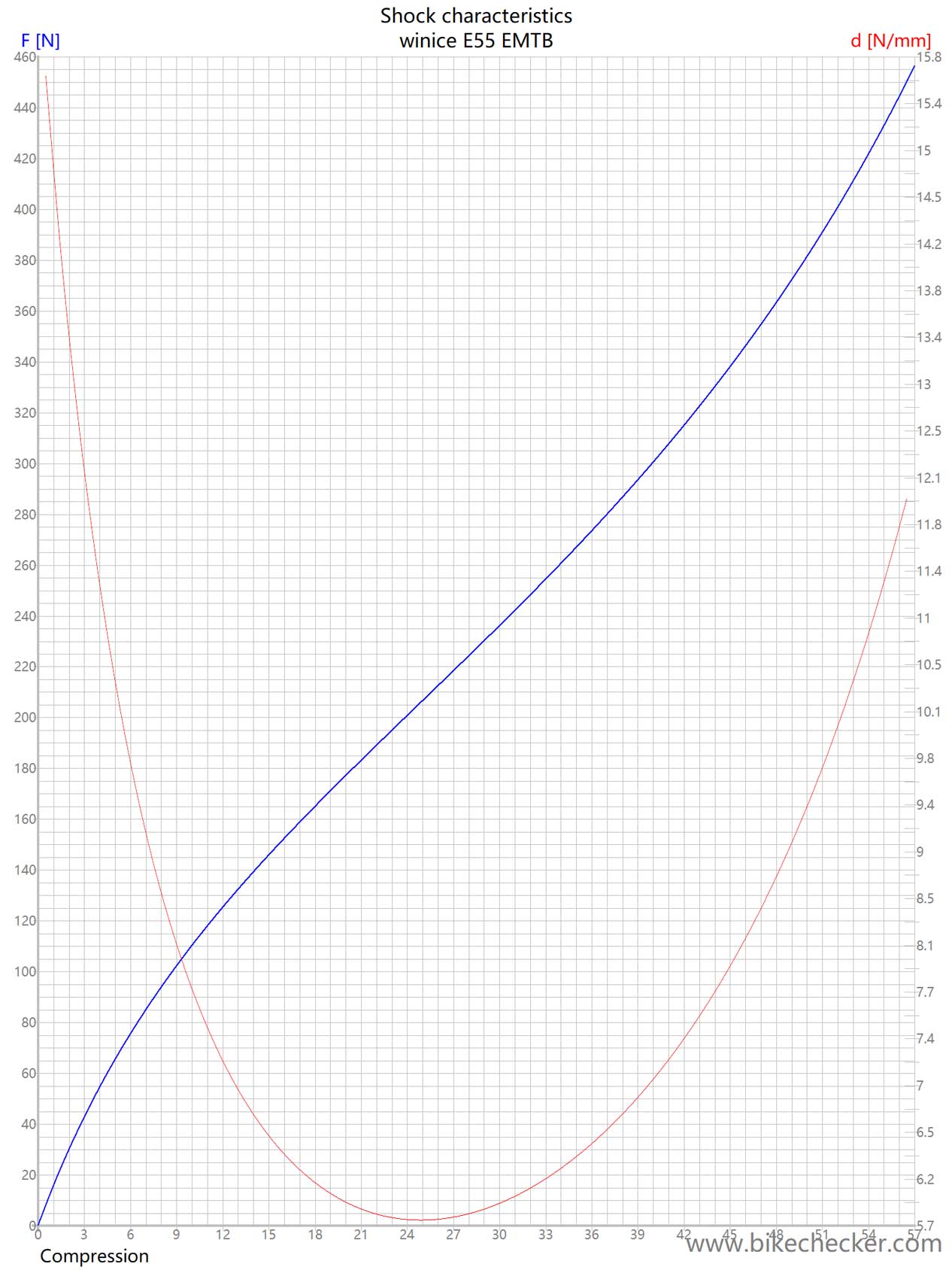

winice E55 EMTB_Shockcurve

winice E55 EMTB_Shockcurve

 Any questions can be asked in the DengFu's forum
