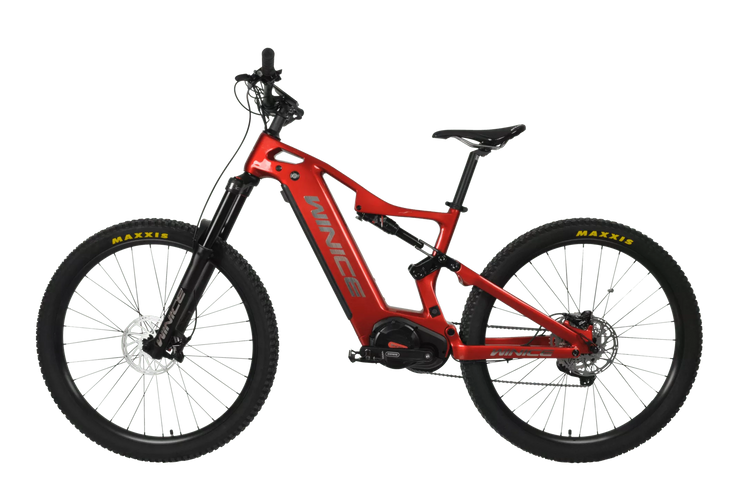

E55

Regular price $3,599.00 Save $-3,599.00
15 in stock


FRAMESET
E-MTB FRAME Frame

TORAY T700 carbon fiber, 150mm travel, internal cable routing, post mount disc brake, 148x12 thru axle.

(For frame color, you can choose Black/white/red color in matt/glossy finish.  Without decals)

mtb fork Fork DengFu suspension fork 170mm travel, 1 1/8"-1 1/2"(OD62mm,ID56mm).
bicycle seatpost Seat post Aluminum seat post,31.6mm diameter, 350mm drop.
bicycle headset Headset 1 1/8"-1 1/2"(OD62mm,ID56mm).
MOTOR
MOTOR Motor BAFANG M620 1000W 52V +shift sensor.
battery Battery Rhino Lithium-ion 52V 20Ah 1040Wh, 4A fast charging.
DRIVETRAIN
rear derailleur Rear Derailleur Shimano M4100.
front derailleur Front Derailleur W/O
crankset Crankset BAFANG EB11 170mm 40T.
cassette Cassette Shimano M4100 11-46T 10 Speed.
mtb shifter Shifters Shimano M4100.
MTB BRAKE LEVER Brakes Attack 4 Piston Brakes.
bicycle chain Chain KMC 10S 128 links.
Rotor Disc size: 180mm Z8.
WHEELSET
bicycle wheel Wheels 36mm-27.5er/29er Aluminum Alloy, MT922+DT spokes, 32/32 holes.
Tyre
MAXXIS 27.5er/29erx2.6.
COMPONENTS
bicycle shock Rear Shock DNM 210x55 Air Cylinder (70mm), 32.3/16.8bush 70mm connecting rod.
mtb handlebar Handlebar Aluminum Swallow handle 800mm.
bicycle stem Stem Aluminum 45mm.
bicycle saddle Saddle Comfortable, Black GUB.
bicycle pedal Pedal W/O
FRAMESET
E-MTB FRAME Frame TORAY T700 carbon fiber, 150mm travel, internal cable routing, post mount disc brake, 148x12 thru axle.                 (For frame color, you can choose Black/white/red color in matt/glossy finish.  Without decals)
mtb fork Fork SRAM YARI suspension fork, 160mm travel, Black, 1 1/8"-1 1/2"(OD62mm,ID56mm).
bicycle seatpost Seat post UDING suspension seat post, 150mm travel.
bicycle headset Headset 1 1/8"-1 1/2"(OD62mm,ID56mm).
MOTOR
MOTOR Motor BAFANG M620 1000W 52V +Shift sensor.
battery Battery Rhino Lithium-ion  52V 20Ah 1040Wh, 4A fast charging.
DRIVETRAIN
rear derailleur Rear Derailleur SRAM SX 12S.
front derailleur Front Derailleur W/O
crankset Crankset BAFANG EB11 170mm 40T.
cassette Cassette SRAM SX 12S 12 Speed.
mtb shifter Shifters SRAM SX 12S.
MTB BRAKE LEVER Brakes SRAM G2 hydraulic brakes.
bicycle chain Chain SRAM SX 12S.
Rotor Disc size: 180mm Z8.
WHEELSET
bicycle wheel Wheels 36mm-27.5er/29er Aluminum Alloy, MT922+DT spokes, 32/32 holes.
Tyre MAXXIS 27.5er/29erx2.6.
COMPONENTS
bicycle shock Rear Shock SRAM ROCKSHOX RS SDLX R 230X60 (50mm), 32.3/16.8bush 50mm connecting rod.
mtb handlebar Handlebar Aluminum Swallow handle 800mm.
bicycle stem Stem Aluminum 45mm.
bicycle saddle Saddle Comfortable, black FIZIK.
bicycle pedal Pedal W/O





carbon fiber grande

Economical

TORAY CARBON FIBER

Manufactured with Toray T700 carbon fiber. Lightweight, strong, stiff and durable.

Internal Cable Routing

Economical

INTERNAL CABLE ROUTING

Internal cable routing gives the bike a sleek, tight and attractive look.

170mm Travel Suspension Air Fork

Economical

Fork

DengFu suspension fork 170mm travel, 1 1/8"-1 1/2"(OD62mm,ID56mm).

DNM 210x55 Air(70mm)Rear Shock

Economical

Rear Shock

DNM 210x55 Air Cylinder (70mm), 32.3/16.8bush 70mm connecting rod.

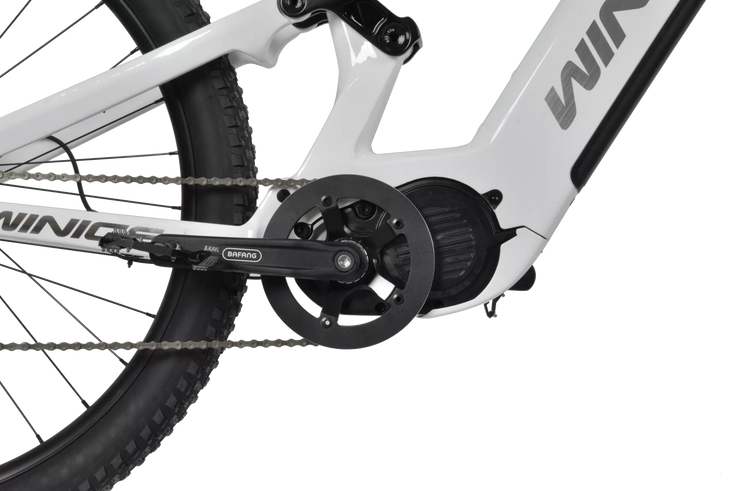

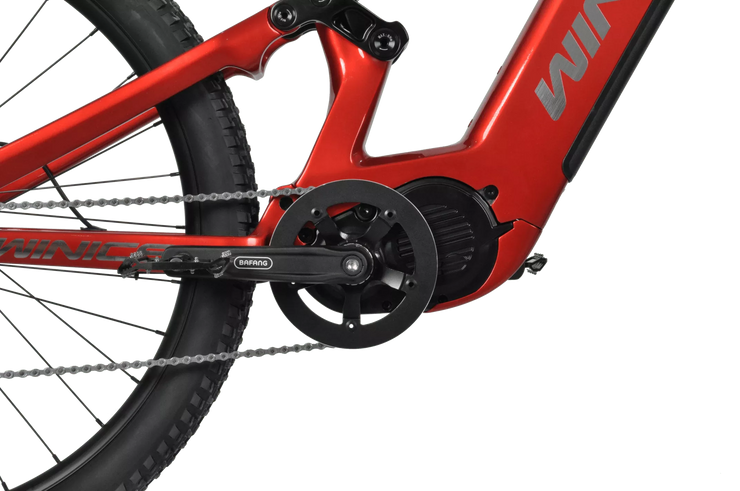

BAFANG G620 1000W 48V

Economical

Motor

BAFANG M620 1000W 48V Gear sensor.

Rhinoceros Lithium-ion 48V 20Ah or 30Ah Battery

Economical

Battery

Rhino Lithium-ion 48V 20Ah 960Wh / 52V 20Ah 1040Wh, 4A fast charging.

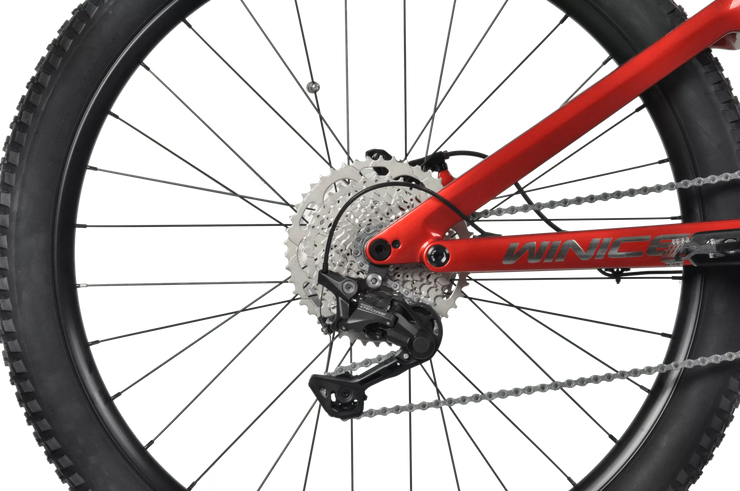

Shimano M4100 Rear Derailleur Shifters and Shimano M4100 11-46T Cassette

Economical

Rear Derailleur and Cassette

Shimano M4100 Rear Derailleur Shifters and Shimano M4100 11-46T 10 Speed Cassette.

Attack 4 Piston Brakes

Economical

Brakes

Attack 4 Piston Brakes.

Bafang Display and 800mm Aluminum Handbar

Economical

Handbar

Bafang Display and Aluminum Swallow handle 800mm.

Wheels 36mm-27.5er or 29er Aluminum Alloy, MT922+DT spokes, 32-32 holes and Tyre MAXXIS 27.5 or 29x2.6

Economical

Wheels and Tyre

Wheels 36mm-27.5er or 29er Aluminum Alloy, MT922+DT spokes, 32-32 holes and Tyre MAXXIS 27.5 or 29x2.6.

Comfortable Black GUB and Aluminum seat post 31.8mm diameter 350mm drop

Economical

Saddle and seat post

Comfortable Black GUB and Aluminum seat post 31.6mm diameter 350mm drop.

Rotor 180mm DISC BRAKE

Economical

Rotor

Rotor 180mm DISC BRAKE.

carbon fiber grande

Professional

TORAY CARBON FIBER

Manufactured with Toray T700 carbon fiber. Lightweight, strong, stiff and durable.

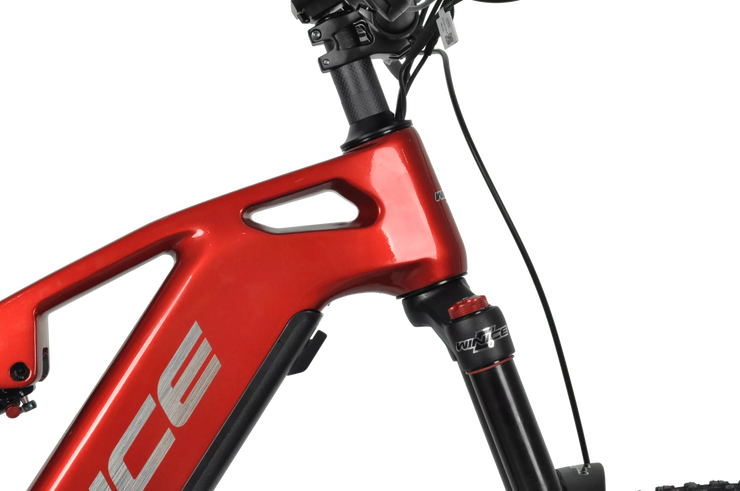

Internal Cable Routing

Professional

INTERNAL CABLE ROUTING

Internal cable routing gives the bike a sleek, tight and attractive look.

SRAM YRAI 160mm Fork

Professional

Fork

SRAM YRAI suspension fork, 160mm travel, Black, 1 1/8"-1 1/2"(OD62mm,ID56mm).

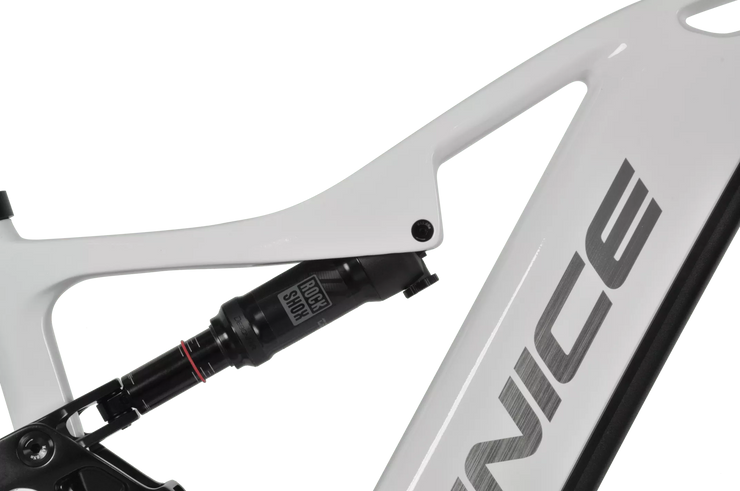

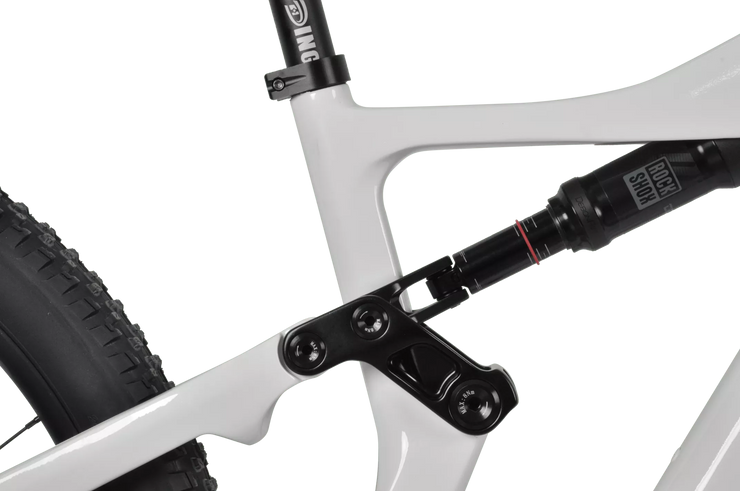

ROCKSHOX RS SDLX R 230x60

Professional

Rear Shock

SRAM ROCKSHOX RS SDLX R 230X60 (50mm), 32.3/16.8bush 50mm connecting rod.

BAFANG G620 1000W 48V

Professional

Motor

BAFANG M620 1000W 48V Gear sensor.

Rhinoceros Lithium-ion 48V 20Ah or 30Ah Battery

Professional

Battery

Rhino Lithium-ion 48V 20Ah 960Wh / 52V 20Ah 1040Wh, 4A fast charging.

SARM SX 12S Rear Derailleur Shifters and Cassette

Professional

Rear Derailleur and Cassette

SARM SX 12S 12 Speed Rear Derailleur Shifters and Cassette.

SRAM G2 Hydraulic Brakes

Professional

Brakes

SRAM G2 Hydraulic Brakes.

Bafang Display and 800mm Aluminum Handbar

Professional

Handbar

Bafang Display and Aluminum Swallow handle 800mm.

Wheels 36mm-27.5er or 29er Aluminum Alloy, MT922+DT spokes, 32-32 holes and Tyre MAXXIS 27.5 or 29x2.6

Professional

Wheels and Tyre

Wheels 36mm-27.5er or 29er Aluminum Alloy, MT922+DT spokes, 32-32 holes and Tyre MAXXIS 27.5 or 29x2.6.

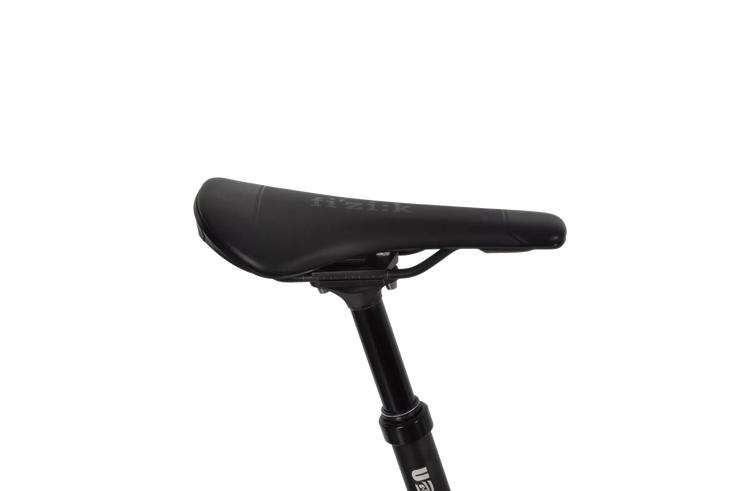

Comfortable Black FIZIK Saddle and UDING Suspension Seat Post,150mm travel

Professional

Saddle and seat post

Comfortable Black FIZIK Saddle and UDING suspension seat post, 100mm travel.

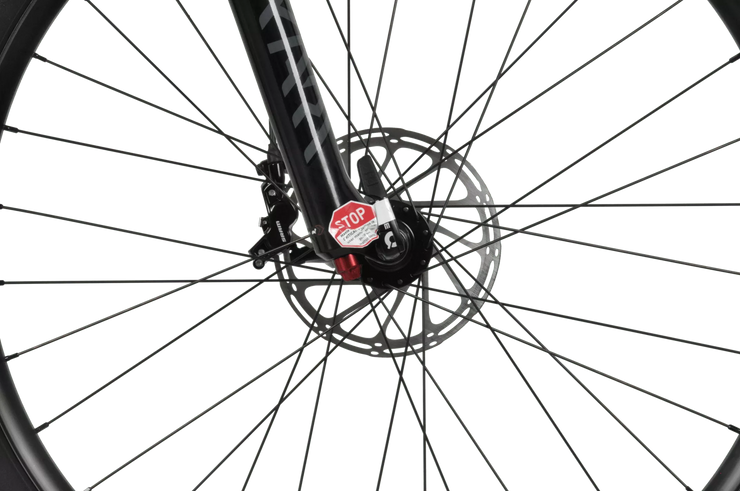

Rotor 180mm DISC BRAKE

Professional

Rotor

Rotor 180mm DISC BRAKE.

 E55-Geometry

SIZE 17" 19"
A 609 632
B 459 481
C 573 573
D 440 480
E 478 478
F 64º 64º
G 77º 77º
H -20 -20
I 1283 1307
J 125 130
K 51 51
HB 800 800
STEM 45 45

*Any question please contact us or
